Third-party TDI transports might stop working after installing Windows security updates released on or after July 14, 2026

Gilt für
Windows 10, version 1607, all editions Win 10 Ent LTSB 2016 Win 10 IoT Ent LTSB 2016 Windows 10, version 1809, all editions Win 10 Ent LTSC 2019 Win 10 IoT Ent LTSC 2019 Windows 10 ESU Windows 10 Enterprise LTSC 2021 Windows 10 IoT Enterprise LTSC 2021 Windows 11 version 23H2, all editions Windows 11 version 24H2, all editions Windows 11 version 25H2, all editions Windows 11 version 26H1, all editions Windows Server 2016 Windows Server 2019 Windows Server 2022 Windows Server, version 23H2 Windows Server 2025

Note

Original publish date: July 14, 2026
KB ID: 5106257

Introduction

After installing a Windows Security Update released on or after July 14, 2026, sockets using a third-party TDI transport might stop working.

Note

A socket is the connection endpoint an app uses to communicate over the network, while a TDI transport is the underlying driver that handles that communication.

Behavior context

Because an untrusted TDI transport is a constant source of security vulnerability, we have introduced an intentional security hardening change that necessitates that every TDI transport that is used as a socket transport must register with the TDI interface.

This means that any TDI transport that does not register with TDI will become unusable as a socket transport.

What is not affected

The TDI documentation states that every TDI transport must be registered. The transport which is registered will not be affected. Before this hardening change, the TDI registration requirement was not enforced by Windows.

Determine if your TDI transport is affected

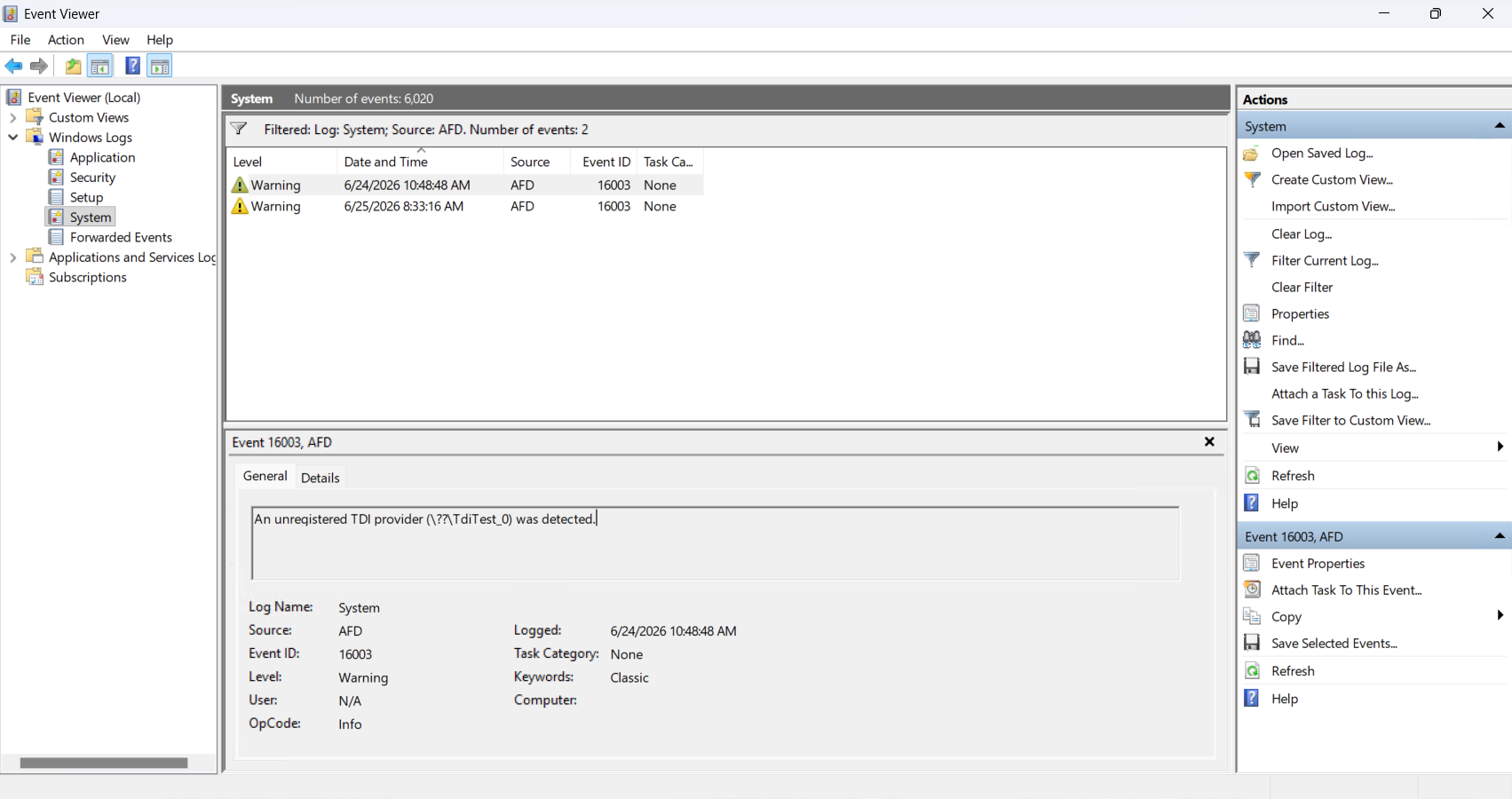

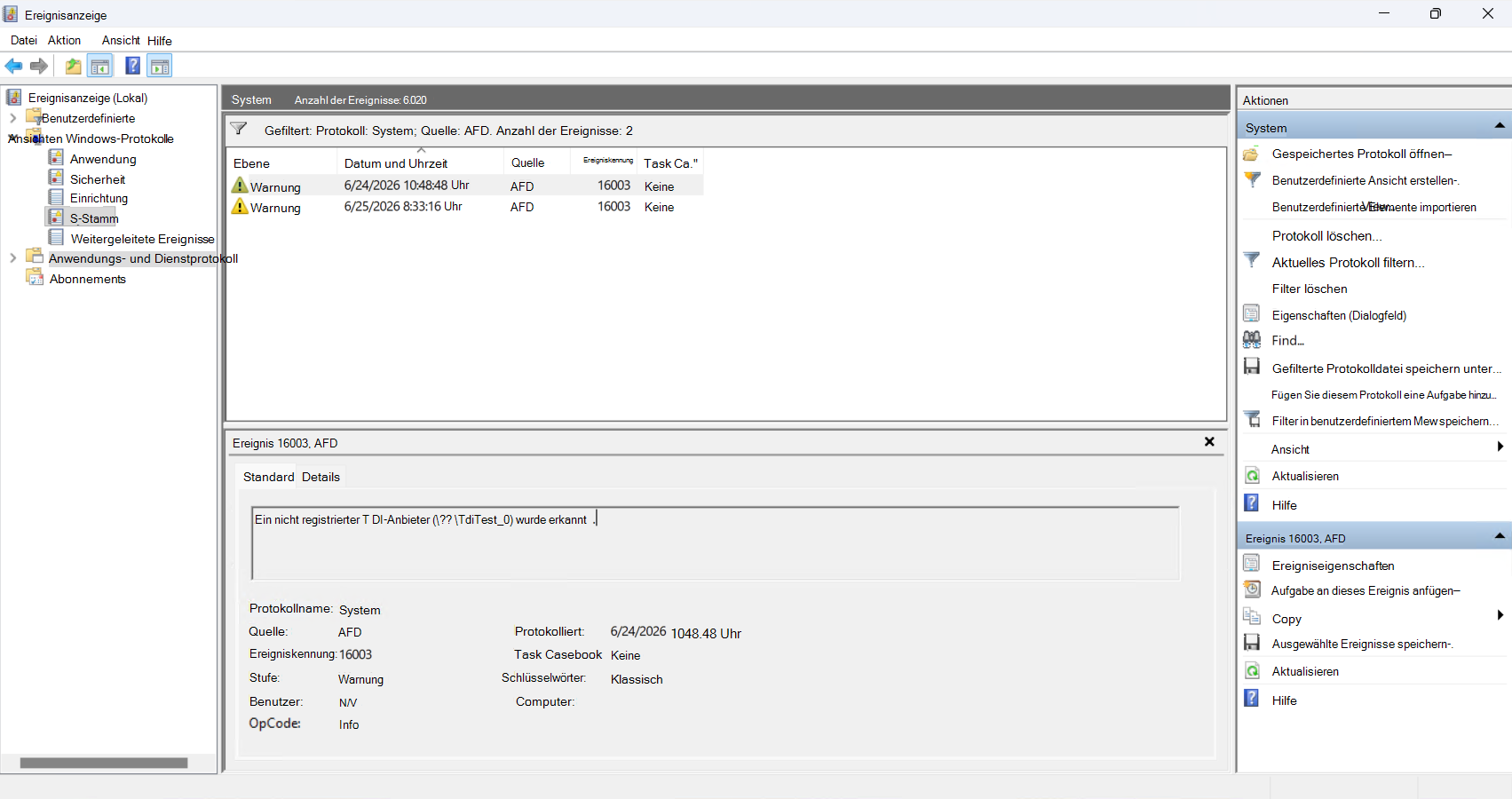

To determine if you have a TDI transport that is affected by this change, check the Windows System event logs in Event Viewer > Windows > System. If you find an AFD Event ID: 16003 "An unregistered TDI provider (\Driver<Name>) was detected", then your TDI transport is affected by this change.

AFD Event ID: 16003

Note

Only one event is logged per restart cycle.

Managing the behavior

We understand that this change may impact certain legacy applications and solutions that still rely on TDI. As a mitigation, administrators have the option to configure devices to disable the mitigation while they bring the TDI dependencies under compliance as soon as possible.

To manage the validation level for third-party transports, configure the AfdTdiUnknownProviderValidationLevel value as appropriate.

Important

This section, method, or task contains information about how to change the registry. However, serious problems might occur if you change the registry incorrectly. Therefore, make sure that you follow these steps carefully. For added protection, back up the registry before you change it. Then, you can restore the registry if a problem occurs. For more information about how to back up and restore the registry, see How to back up and restore the registry in Windows.

Information Details
Registry location HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\AFD\Parameters
Value name AfdTdiUnknownProviderValidationLevel
Value type REG_DWORD
Value data
  • 0 (Ignore): Validation completely disabled
  • 1 (LogUnregistered): Validation disabled but will log any unregistered TDI provider
  • 2 (BlockUnregistered): Logs and blocks unregistered TDI provider (Default)
  • 3 (Block): Logs and blocks every TDI provider

IMPORTANT Lowering the validation to either 0 (ignore) or 1 (LogUnregistered) provides best-effort protection but still leaves your system vulnerable. We recommend keeping the validation level at or above 2 (BlockUnregistered) and updating or replacing any affected third-party TDI transports with versions that properly register with the TDI interface.
