Overview

This guide describes the automated deployment system for Windows Secure Boot DB certificate updates using Group Policy and progressive rollout waves.

The Secure Boot Certificate Rollout Automation is a PowerShell-based system that deploys Windows Secure Boot DB certificate updates to domain-joined machines in a controlled, graduated manner.

back to top

Key Features

Feature	Description
Graduated Rollout	1 > 2 > 4 > 8… devices per bucket
Automatic Blocking	Buckets with unreachable devices are excluded
Automated GPO Deployment	Single orchestrator script handles everything
Scheduled Task Execution	No interactive prompts required
Real-time Monitoring	Status viewer with progress bar

back to top

Certificate Updates Settings Reference

In this section

• AvailableUpdatesPolicy Group policy
• WinCSFlags - Windows Configuration System Flags

AvailableUpdatesPolicy Group policy

Registry location	HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\SecureBoot
Name	AvailableUpdatesPolicy
Value	0x5944 (DWORD)

This is the GPO/ADMX-controlled key that:

• Persists across reboots
• Is set by Group Policy / MDM
• Does not cause retry loops (cleared via ClearRolloutFlags)
• Is the correct key for policy-driven deployment

Reference: Group Policy Objects (GPO) method of Secure Boot for Windows devices with IT-managed updates

back to "Certificate Updates Settings Reference"

WinCSFlags - Windows Configuration System Flags

Domain administrators can alternatively use the Windows Configuration System (WinCS) released with Windows OS updates to deploy the Secure Boot updates across domain-joined Windows clients and servers. It consists of a command-line interface (CLI) utility to query and apply Secure Boot configurations locally to a machine.

Feature name	WinCS Key	Description
Feature_AllKeysAndBootMgrByWinCS	F33E0C8E002	Enabling this key allows installation of the following Microsoft-provided Secure Boot new certificates on your device. Microsoft Corporation KEK 2K CA 2023 Windows UEFI CA 2023 Microsoft UEFI CA 2023 Microsoft Option UEFI ROM CA 2023

Reference: Windows Configuration System (WinCS) APIs for Secure Boot

back to "Certificate Updates Settings Reference"

back to top

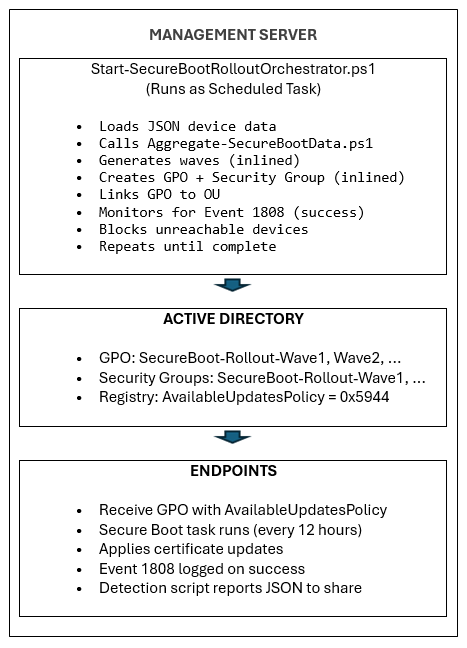

Architecture

back to top

Phase 1: Detection and Status Monitoring at Enterprise level

In this section

• Scripts needed for Phase 1
• Local Testing
• Network Share Setup
• GPO Deployment
• GPO Settings Summary
• Verification

Scripts needed for Phase 1

Sample Secure Boot Inventory Data Collection scripts

Sample Script Name	Purpose	Runs On
Sample Detect-SecureBootCertUpdateStatus.ps1 script	Collects device status data	Each endpoint (via GPO)
Sample Aggregate-SecureBootData.ps1 script	Generates reports and dashboards	Admin workstation
Sample Deploy-GPO-SecureBootCollection.ps1 script	Automates GPO creation for data collection	Domain Controller

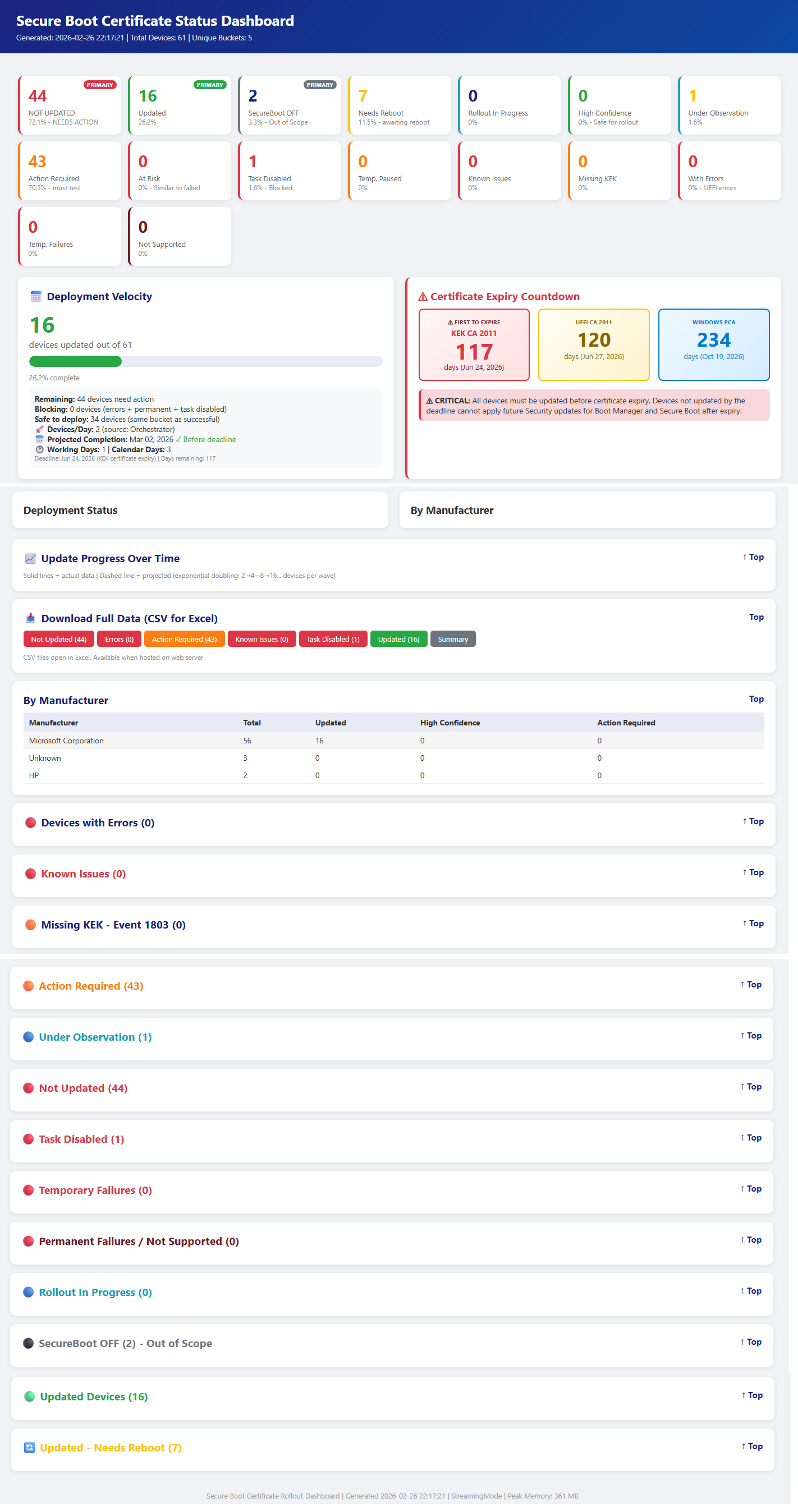

Sample Output from the above Phase 1 scripts

back to "Phase 1: Detection and Status Monitoring at Enterprise level"

Local Testing

Before deploying via GPO, test the collection script on a single machine to verify functionality.

• Run Collection Script Locally

  Open an elevated PowerShell prompt and execute:

  Note

  & .\Detect-SecureBootCertUpdateStatus.ps1 -OutputPath "C:\Temp\SecureBootTest"

• Verify JSON Output

  Note

  # View the collected data
  Get-Content "C:\Temp\SecureBootTest\*_latest.json" | ConvertFrom-Json | Format-List

  Key Fields to Verify
  •    SecureBootEnabled – Should be True or False
  •    OverallStatus – Complete, ReadyForUpdate, NeedsData, or Error
  •    BucketHash – Device bucket for confidence data matching
  •    SecureBootTaskEnabled  - Shows status of Secure Boot Update Task.

• Test Aggregation Script

  Note

  # Generate reports from collected data
  & ".\Aggregate-SecureBootData.ps1" `
      -InputPath "C:\Temp\SecureBootTest" `
      -OutputPath "C:\Temp\SecureBootReports"


  Open the HTML dashboard

  Start-Process "C:\Temp\SecureBootReports\SecureBoot_Dashboard_*.html"

back to "Phase 1: Detection and Status Monitoring at Enterprise level"

Network Share Setup

• Create the Network Share

  On your file server, create a dedicated share for collection data:

  Note

  # Run on file server as Administrator
  $SharePath = "D:\SecureBootCollection"
  $ShareName = "SecureBootData$"


  Create folder

  New-Item -ItemType Directory -Path $SharePath -Force


  Create hidden share ($ suffix hides from browse list)

  New-SmbShare -Name $ShareName -Path $SharePath `
      -Description "Secure Boot Certificate Status Collection" `
      -FullAccess "Domain Admins" `
      -ChangeAccess "Domain Computers"

• Configure NTFS Permissions

  Note

  # Get current ACL
  $Acl = Get-Acl $SharePath


  Allow Authenticated Users to write files

  $WriteRule = New-Object System.Security.AccessControl.FileSystemAccessRule(
  "Domain Computers" and
  "Modify",
      "ContainerInherit,ObjectInherit",
      "None",
      "Allow"
  )
  $Acl.AddAccessRule($WriteRule)


  Allow Domain Admins full control (for aggregation)

  $AdminRule = New-Object System.Security.AccessControl.FileSystemAccessRule(
      "Domain Admins",
      "FullControl",
      "ContainerInherit,ObjectInherit",
      "None",
      "Allow"
  )
  $Acl.AddAccessRule($AdminRule)


  Apply permissions

  Set-Acl -Path $SharePath -AclObject $Acl

• Verify Share Access

  Note

  # Test from a domain-joined workstation
  Test-Path "\\fileserver\SecureBootData$"

  Should return: True

back to "Phase 1: Detection and Status Monitoring at Enterprise level"

GPO Deployment

Use the automation script provided from a domain controller:

This script will perform the following:

• Creates new GPO with specified name
• Copies collection script to SYSVOL for high availability
• Configures Computer Startup Script
• Links GPO to target OU
• Optionally creates scheduled task for periodic collection

The following table provides guidance in how long the delay will be based on your fleet size.

Fleet size	Delay range
1-10K devices	4 hours
10K-50K devices	8 hours
50K+ devices	12-24 hours

back to "Phase 1: Detection and Status Monitoring at Enterprise level"

GPO Settings Summary

Setting	Location	Value
Startup Script	Computer Config → Scripts	Detect-SecureBootCertUpdateStatus.ps1
Script Parameters	(same)	-OutputPath "\\server\share$"
Execution Policy	Computer Config → Admin Templates → PowerShell	Allow local and remote signed
Scheduled Task	Computer Config → Preferences → Scheduled Tasks	Daily/Weekly collection

back to "Phase 1: Detection and Status Monitoring at Enterprise level"

Verification

• Force GPO Update on Test Machine

  Note

  ## On a test workstation
  gpupdate /force


  Reboot the client machines to startup script or it will trigger on next schedule.

  Restart-Computer -Force

• Verify Data Collection

  Note

  Check if data was collected (on file server or from any machine)

  Get-ChildItem "\\fileserver\SecureBootData$" |
      Sort-Object LastWriteTime -Descending |
      Select-Object -First 10


  Verify JSON content

  Get-Content "\\fileserver\SecureBootData$\TESTPC_latest.json" | ConvertFrom-Json

• Check GPO Application

  Note

  Verify GPO is applied to the computer

  Select-String "SecureBoot"
  The script also saves a local copy for redundancy:
  Get-ChildItem "C:\ProgramData\SecureBootCollection\"

back to "Phase 1: Detection and Status Monitoring at Enterprise level"

back to top

Phase 2: Secure Boot Certificate Update Orchestration Scripts

In this section

• Scripts needed for Phase 2
• Start-SecureBootRolloutOrchestrator.ps1
• Deploy-OrchestratorTask.ps1
• Get-SecureBootRolloutStatus.ps1

Scripts needed for Phase 2

Sample Secure Boot Inventory Data Collection scripts

Sample script name	Purpose	Runs on
Sample Detect-SecureBootCertUpdateStatus.ps1 script	Collects device status data	Each endpoint (via GPO)
Sample Aggregate-SecureBootData.ps1 script	Generates reports and dashboards	Admin workstation
Sample Deploy-GPO-SecureBootCollection.ps1 script	Automates GPO creation for data collection	Domain Controller
Sample Start-SecureBootRolloutOrchestrator.ps1 script	Fully automated, continuous orchestration with automated GPO deployment for certificate installation	Admin workstation
Sample Deploy-OrchestratorTask.ps1 script	Deploys Orchestrator script as scheduled task for automated rollout	Domain Controller
Sample Get-SecureBootRolloutStatus.ps1 script	View Secure Boot Certificate Roll out status from any workstation	Admin Workstation
Sample Enable-SecureBootUpdateTask.ps1 script	Enables Secure Boot Update Task	On End points where task is disabled (Run only once to enable the task if disabled)

back to "Phase 2: Secure Boot Certificate Update Orchestration Scripts"

Start-SecureBootRolloutOrchestrator.ps1

• Purpose: Fully automated, continuous orchestration with automated GPO deployment.

• What it does

  • Calls Aggregate-SecureBootData.ps1 for device status

  • Generates rollout waves using progressive doubling

  • Creates GPO for certificate deployment using one of following methods

    • Secure boot Group policy AvailableUpdatesPolicy = 0x5944  (Default)
    • WinCS method (Parameter –UseWinCS)

  • Creates AD security groups for targeting

  • Adds computer accounts to security groups

  • Configures GPO security filtering

  • Links GPO to target OU

  • Monitors for blocked buckets (unreachable devices)

  • Auto-unblocks when devices recover

• Usage

  Note

  # Interactive (testing)
  .\Start-SecureBootRolloutOrchestrator.ps1 `
      -AggregationInputPath "\\fileserver\SecureBootData$" `
      -ReportBasePath "C:\SecureBootReports" `
      -PollIntervalMinutes 30

  Note

  # Interactive (testing), leveraging WinCS method
  .\Start-SecureBootRolloutOrchestrator.ps1 `
      -AggregationInputPath "\\fileserver\SecureBootData$" `
      -ReportBasePath "C:\SecureBootReports" `
      -PollIntervalMinutes 30 `
      -UseWinCS

• Admin commands

  Note

  # List blocked buckets
  .\Start-SecureBootRolloutOrchestrator.ps1 -ReportBasePath "C:\SecureBootReports" -ListBlockedBuckets

  Note

  # Unblock specific bucket
  .\Start-SecureBootRolloutOrchestrator.ps1 -ReportBasePath "C:\SecureBootReports" -UnblockBucket "Dell|Latitude5520|BIOS1.2"

  Note

  # Unblock all
  .\Start-SecureBootRolloutOrchestrator.ps1 -ReportBasePath "C:\SecureBootReports" -UnblockAll​​​​​​​

• Parameters

  Parameter	Default	Description
  AggregationInputPath	Required	UNC path to endpoint JSON files
  ReportBasePath	Required	Local path for reports and state
  TargetOU	Domain root	OU to link GPOs
  WavePrefix	SecureBoot-Rollout	GPO/group naming prefix
  MaxWaitHours	72	Hours before checking device reachability
  PollIntervalMinutes	1440	Minutes between status checks
  DryRun	False	Show what would happen without changes

  Note

  Note on PollIntervalMinutes: When running the orchestrator directly, the default is 1440 minutes (24 hours). When deployed via Deploy-OrchestratorTask.ps1, the default is 30 minutes. The deploy script passes its own default to the orchestrator. Use 30 minutes for active rollout, 1440 for maintenance monitoring.

  Optional Parameters

  Parameter	Default	Description
  UseWinCS	False	Use WinCS method instead of AvailableUpdatesPolicy GPO
  WinCSKey	F33E0C8E002	WinCS key for Secure Boot configuration
  AllowListPath	(none)	Path to file with hostnames to ALLOW for targeted/pilot rollout. Supports .txt or .csv.
  AllowADGroup	(none)	AD security group of computer accounts to ALLOW. Example: "SecureBoot-Pilot-Computers"
  ExclusionListPath	(none)	Path to file with hostnames to EXCLUDE from rollout (VIP/executive devices)
  ExcludeADGroup	(none)	AD security group of computer accounts to exclude. Example: "VIP-Computers"
  ListBlockedBuckets	False	Display currently blocked device buckets
  UnblockBucket	(none)	Unblock a specific bucket. Format: "Manufacturer|Model|BIOS"
  UnblockAll	False	Unblock all blocked device buckets

back to "Phase 2: Secure Boot Certificate Update Orchestration Scripts"

Deploy-OrchestratorTask.ps1

• Purpose: Deploys the orchestrator as a Windows Scheduled Task.

• Benefits

  • No PowerShell security prompts (ExecutionPolicy Bypass)
  • Runs in background continuously
  • No user interaction required
  • Survives reboots

• Usage

  • Deploy with domain service account (recommended)

    • Use AvailableUpdates Group Policy (Default Method)

      Note

      .\Deploy-OrchestratorTask.ps1 `
          -AggregationInputPath "\\server\SecureBootData$" `
          -ReportBasePath "C:\SecureBootReports" `
          -ServiceAccount "DOMAIN\svc_secureboot"

    • Use WinCS method

      Note

      .\Deploy-OrchestratorTask.ps1 `
          -AggregationInputPath "\\server\SecureBootData$" `
          -ReportBasePath "C:\SecureBootReports" `
          -ServiceAccount "DOMAIN\svc_secureboot" -UseWinCS

  • Deploy with SYSTEM account

    • Use AvailableUpdates Group Policy (Default Method)

      Note

      .\Deploy-OrchestratorTask.ps1 `
          -AggregationInputPath "\\server\SecureBootData$" `
          -ReportBasePath "C:\SecureBootReports"

    • Use WinCS method.\Deploy-OrchestratorTask.ps1

      Note

      -AggregationInputPath "\\server\SecureBootData$" `
          -ReportBasePath "C:\SecureBootReports"  -UseWinCS​​​​​​​

    • Service Account Requirements

      • Domain Admin (for New-GPO, New-ADGroup, Add-ADGroupMember)
      • Read access to JSON file share
      • Write access to ReportBasePath

back to "Phase 2: Secure Boot Certificate Update Orchestration Scripts"

Get-SecureBootRolloutStatus.ps1

• Purpose: View rollout progress from any workstation.

• What it shows

  • Scheduled task state (Running/Ready/Stopped)
  • Current wave number
  • Devices targeted vs updated
  • Visual progress bar
  • Blocked buckets summary
  • Link to latest HTML dashboard

• Usage

  Note

  # Quick status check
  .\Get-SecureBootRolloutStatus.ps1 -ReportBasePath "C:\SecureBootReports"

  Note

  # Continuous monitoring (refreshes every 30 seconds)
  .\Get-SecureBootRolloutStatus.ps1 -ReportBasePath "C:\SecureBootReports" -Watch 30

  Note

  # View blocked buckets
  .\Get-SecureBootRolloutStatus.ps1 -ReportBasePath "C:\SecureBootReports" -ShowBlocked

  Note

  # View wave history
  .\Get-SecureBootRolloutStatus.ps1 -ReportBasePath "C:\SecureBootReports" -ShowWaves

  Note

  # View recent log
  .\Get-SecureBootRolloutStatus.ps1 -ReportBasePath "C:\SecureBootReports" -ShowLog

  Note

  # Open dashboard in browser
  .\Get-SecureBootRolloutStatus.ps1 -ReportBasePath "C:\SecureBootReports" -OpenDashboard

• Parameters

  Parameter	Required?	Default	Description
  ReportBasePath	Required	—	Local path to reports and state files
  ShowLog	Optional	False	Display recent orchestrator log entries
  ShowBlocked	Optional	False	Display blocked buckets details
  ShowWaves	Optional	False	Display wave history
  Watch	Optional	0 (disabled)	Auto-refresh interval in seconds. Example: -Watch 30 refreshes every 30 seconds.
  OpenDashboard	Optional	False	Open the latest HTML dashboard in the default browser

• Sample output

  Note

  • ==============================================================
       SECURE BOOT ROLLOUT STATUS
       2026-02-17 19:30:00
    ======================================================
  • Scheduled Task: Running
  • ROLLOUT PROGRESS

  ---

  Status:              InProgress
  Current Wave:        5
  Total Targeted:      1250
  Total Updated:       847

  • Progress: [█████████████████████░░░░░░░░░░░░░░░░░░░] 67.8%
  • BLOCKED BUCKETS: 2 buckets need attention
      Run with -ShowBlocked for details
  • LATEST DASHBOARD
    C:\SecureBootReports\Aggregation_20260217_193000\SecureBoot_Dashboard.html
    __________________________________________________________________________________________

back to "Phase 2: Secure Boot Certificate Update Orchestration Scripts"

back to top

E2E Deployment Steps (Quick Reference Guide)

In this section

• Phase 1: Detection Infrastructure
• Phase 2: Orchestrated Rollout
• State Files

Phase 1: Detection Infrastructure

• Step 1: Create Collection Share

  Note

  # On file server
  $sharePath = "D:\SecureBootData"
  New-Item -ItemType Directory -Path $sharePath -Force
  New-SmbShare -Name "SecureBootData$" -Path $sharePath -FullAccess "Domain Admins" -ChangeAccess "Domain Computers"

  Note

  # Set NTFS permissions
  $acl = Get-Acl $sharePath
  $rule = New-Object System.Security.AccessControl.FileSystemAccessRule("Domain Computers","Modify","Allow")
  $acl.AddAccessRule($rule)
  Set-Acl $sharePath $acl

• Step 2: Deploy Detection GPO

  Note

  .\Deploy-GPO-SecureBootCollection.ps1 `
      -DomainName "contoso.com" `
      -OUPath "OU=Workstations,DC=contoso,DC=com" `
      -CollectionSharePath "\\server\SecureBootData$"

• Step 3: Wait for Endpoints to Report (24-48 hours)

  Note

  Check collection progress

  (Get-ChildItem "\\server\SecureBootData$" -Filter "*.json").Count

back to "E2E Deployment Steps (Quick Reference Guide)"

Phase 2: Orchestrated Rollout

• Step 4: Prerequisites Check

  • Detection GPO deployed (Step 2)
  • At least 50+ endpoints reporting JSON
  • Service account with Domain Admin rights
  • Management server with PowerShell 5.1+

• Step 5: Deploy Orchestrator as Scheduled Task

  Note

  .\Deploy-OrchestratorTask.ps1 `
      -AggregationInputPath "\\server\SecureBootData$" `
      -ReportBasePath "C:\SecureBootReports" `
      -ServiceAccount "DOMAIN\svc_secureboot"

• Step 6: Monitor Progress

  Note

  .\Get-SecureBootRolloutStatus.ps1 -ReportBasePath "C:\SecureBootReports"

• Step 7: View Dashboard

  Note

  .\Get-SecureBootRolloutStatus.ps1 -ReportBasePath "C:\SecureBootReports" -OpenDashboard

• Step 8: Manage Blocked Buckets

  Note

  # List blocked
  .\Start-SecureBootRolloutOrchestrator.ps1 -ReportBasePath "C:\SecureBootReports" -ListBlockedBuckets

  Note

  # Investigate and unblock
  .\Start-SecureBootRolloutOrchestrator.ps1 -ReportBasePath "C:\SecureBootReports" -UnblockBucket "Manufacturer|Model|BIOS"

• Step 9: Verify Completion

  Note

  .\Get-SecureBootRolloutStatus.ps1 -ReportBasePath "C:\SecureBootReports"

  Status should show "Completed"

back to "E2E Deployment Steps (Quick Reference Guide)"

State Files

The orchestrator maintains state in ReportBasePath\RolloutState\:

File	Description
RolloutState.json	Wave history, targeted devices, status
BlockedBuckets.json	Buckets needing investigation
DeviceHistory.json	Device tracking by hostname
Orchestrator_YYYYMMDD.log	Daily activity logs

back to "E2E Deployment Steps (Quick Reference Guide)"

back to top

Troubleshooting

In this section

• Orchestrator Not Progressing
• Blocked Buckets
• GPO Not Applying

Orchestrator Not Progressing

1. Check scheduled task

   Note

   Get-ScheduledTask -TaskName "SecureBoot-Rollout-Orchestrator"

2. Check logs

   Note

   Get-Content "C:\SecureBootReports\RolloutState\Orchestrator_*.log" -Tail 50

3. Verify JSON data freshness

   Note

   (Get-ChildItem "\\server\SecureBootData$" -Filter "*.json" | Where-Object { $_.LastWriteTime -gt (Get-Date).AddDays(-1) }).Count

back to "Troubleshooting"

Blocked Buckets

1. List blocked.

   Note

   .\Start-SecureBootRolloutOrchestrator.ps1 -ReportBasePath "C:\SecureBootReports" -ListBlockedBuckets

2. Investigate device reachability.

3. Check for firmware issues.

4. Unblock after investigation.

back to "Troubleshooting"

GPO Not Applying

1. Verify GPO exists.

   Note

   Get-GPO -Name "SecureBoot-Rollout-Wave*"

2. Check security filtering.

   Note

   Get-GPPermission -Name "GPO-Name" -All

3. Verify computer is in security group.

4. Apply the GPO on the target.

   Note

   gpupdate /force

back to "Troubleshooting"

back to top

Change log

Change date	Change description
May 12, 2026	Previously, each sample script file was published as individual articles from which you would copy-and-paste the script. Starting with the Windows updates released on and after May 12, 2026, the sample scripts are located in the %systemroot%\SecureBoot\ExampleRolloutScripts folder on your device.
