Add a 360° image to a SharePoint space

Note

The SharePoint spaces feature is deprecated starting March 2025. We recommend exploring Microsoft Mesh for new Immersive 3D content in M365.

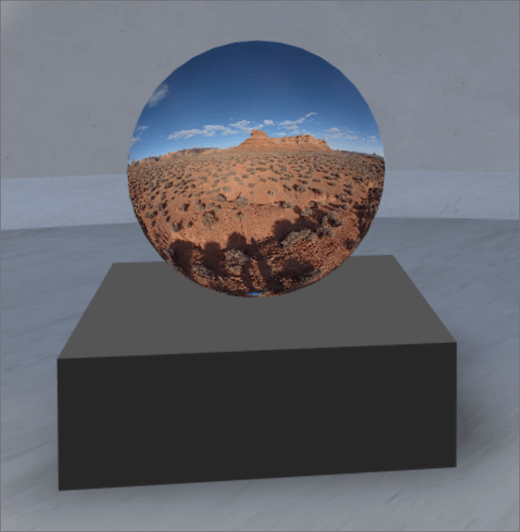

360 image web part

1⁠.  If you're not already in edit mode, at the top right of your space, select Edit.

2⁠.  On the canvas, select the circled ⁠+⁠ icon.

3⁠.  Select 360° Image.

4⁠.  Click to place the web part anywhere on the structure (floor).

5⁠.  In the file picker, select the 360° image file you'd like to use, and then select Open.

5⁠.  Select the web part, and then select the pencil icon. This opens the property panel.

6⁠.  To change the image format, select Image not displaying correctly?.

  • If the camera you used to capture the 360° image was a single lens camera which was placed on a rig or ring formation to make a circle, select Monoscopic. If the camera you used to capture the 360° image was two cameras for each field of view, select Stereoscopic.

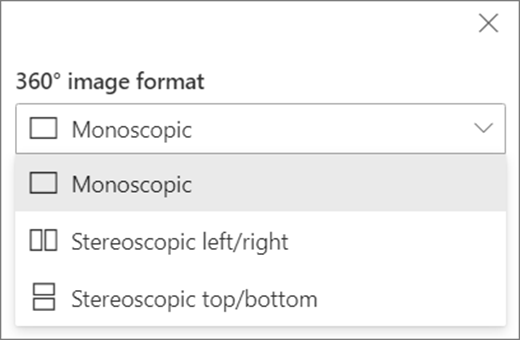

Image format options

7⁠.  To set the starting view, select your preference for Image rotation.

Image rotation

8⁠.  (Optional) Select and enter Alternate text.

9⁠.  (Optional) If you want a podium to appear below the image, select Show podium. To set the distance between the image and the podium, use the Height from podium slider.

10⁠.  Select Save as draft or Publish.

Note

For guidance on sizing and placing web parts, see Add and use web parts in a SharePoint space.

Add actions to a 360° image

Actions make web parts interactive. You can select actions while editing your web part. After you save your space as a draft or publish it, they become interactive. Adding actions is optional.

1⁠.  While editing, select the 360° image web part, and select the pencil icon. This opens the property panel. Scroll down to Actions.

2⁠.  Select Add action.

  • When you select the web part, the On trigger action occurs.
  • When you right-click (mouse) or press + hold (controller), More actions appears.

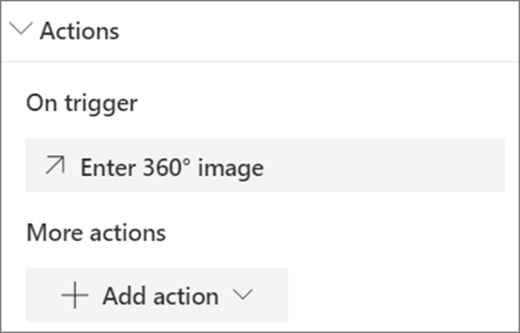

image options

Note

Enter 360° image is the (locked) On trigger action for this web part. To configure More actions, select Add action, and then select ⁠...⁠ (ellipsis). To re-order the actions, drag them into the order you want.

3⁠. For More actions, select from the following:

  • Link to another space: Opens a linked SharePoint space).
  • Play audio: Plays an attached audio file.
  • Link to a page or item: Opens a linked URL (for example, a SharePoint page, a public website).

4⁠. (Optional) Enter a Description.

5⁠. To try out your actions, select Save as draft or Publish.
