Surface Duo (1st Gen) features and specs
Note
This device has reached its end-of-servicing date based on the Surface Lifecycle for Android-based devices and will no longer receive newer Android version and security updates.
With two screens, Surface Duo helps you get more done in better ways. It’s a thin and light mobile device that folds and fits in your pocket, so you can always take it with you. Just open your Surface Duo to use the dual, high-resolution PixelSense™ Fusion Displays that give you 8.1” of space to work on the go throughout your day—whether it’s for work, school, or yourself.
Get to know Surface Duo

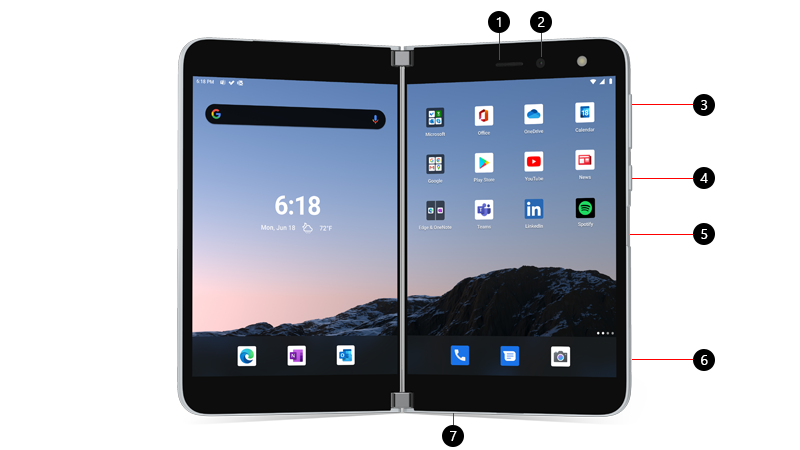

Find your way around Surface Duo by using the diagram below.
- Earpiece for phone calls
- Camera
- Volume
- Power
- Fingerprint reader
- SIM card slot
- USB-C
The Android you know—with your favorite Microsoft apps built in
Surface Duo combines the Google AndroidTM operating system with the best Microsoft 365 apps—including apps like Microsoft Office, Outlook, Microsoft Teams, OneDrive, Microsoft Edge, and more. Since it runs on Android, you can download any other apps and games you want from the Google Play Store. This combination helps you stay connected to people and be more productive, wherever you are. (Some apps and features may require a wireless plan, additional subscriptions, or fees.)
Two screens that adapt to you
Surface Duo has a revolutionary 360° hinge, so you can fold it however you want. It adapts to you. Hold it like a book and have two apps open side-by-side with one on each screen. No need to switch back and forth between two apps anymore.
Some apps are made for two screens. When you want more room to type, work, or browse your favorite sites, just drag one of these apps to the middle, then rotate your Surface Duo to enjoy the extra space.
Ready to talk on the phone or take pictures? Fold one screen back. And when it's time to watch your favorite shows or chat on a video call, just fold your Surface Duo like a tent, relax, and enjoy.
To learn more, see Different ways to use Surface Duo and open Tips on your Surface Duo.
Get the most from Surface Duo with apps made for two screens

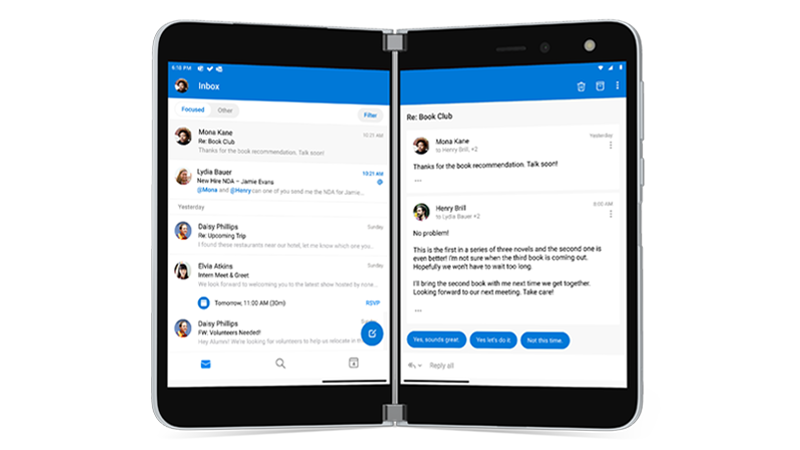

Some apps are already installed and made for two screens, such as Microsoft Office, Outlook, OneNote, OneDrive, and Microsoft Teams (just to name a few). Just drag the app to the middle and get a whole new view. For example, you’ll see an overview on one side with the details on the other. You don’t have to go back and forth in an app to get the info you need. For a detailed list of apps that are made for two screens, see Different ways to use Surface Duo.
Get calls, text messages, notifications and more on your PC
Your Surface Duo and PC go together. With Link to Windows built into Surface Duo, and the Your Phone app on your PC, you can access everything you need from either device. Ready to get going? Check out Link your Surface Duo to your PC to learn how to set it up.

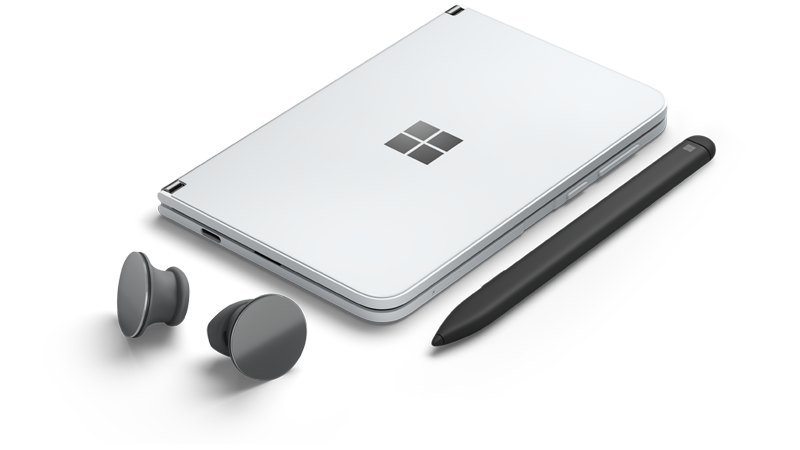

Make it yours with Surface accessories

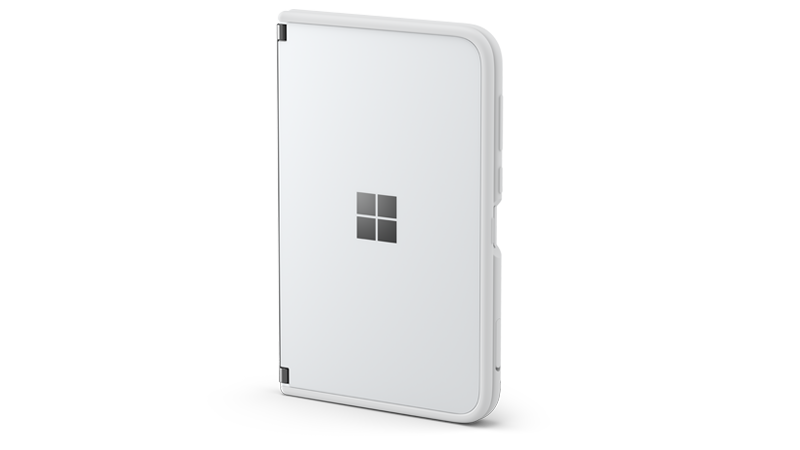

Surface Duo Bumper
The Surface Duo Bumper is included with your Surface Duo. Just peel off the stickers and attach both parts to help protect your Surface Duo. To learn how to put it on, see Attach the Surface Duo Bumper.
Surface Earbuds
Surface Earbuds (not included) pair quickly over Bluetooth and help you enjoy more—screen free. Use them to listen to music, chat with people, and accomplish more with Microsoft 365. To learn how to set them up, see Connect Surface Duo to your Surface Earbuds.
Surface Slim Pen
Use the Surface Slim Pen (not included) to take notes on Surface Duo, jot down ideas, or make quick sketches on the go. Check out Connect Surface Slim Pen to Surface Duo to learn how to get started.
Surface Duo (1st Gen) Tech specs

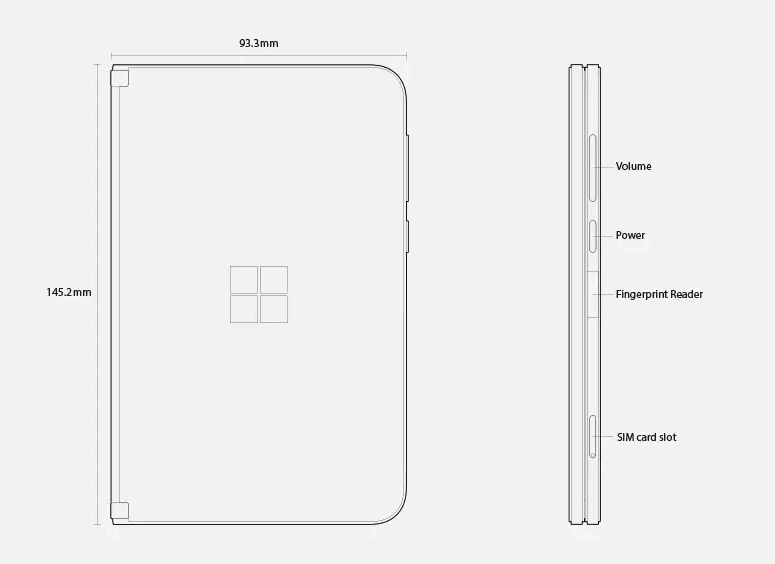

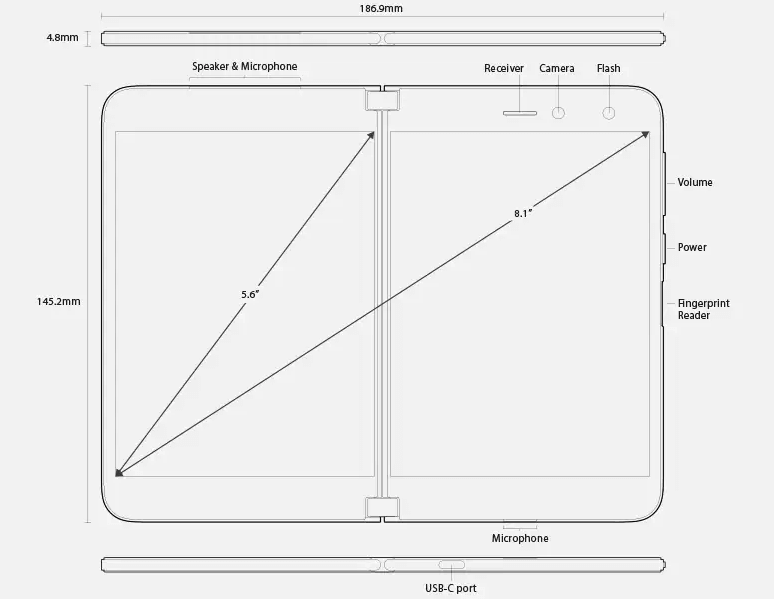

| Dimensions | Open: 145.2 mm (H) x 186.9 mm (W) x 4.8 mm (T) Closed: 145.2 mm (H) x 93.3 mm (W) x 9.9 mm (T at hinge) |
| Weight 1 | 250 grams |
| Display | Dual PixelSense™ Fusion Displays open: 8.1” AMOLED, 2700x1800 (3:2), 401 PPI Single PixelSense™ Display: 5.6” AMOLED, 1800x1350 (4:3), 401 PPI Display Material: Corning® Gorilla® Glass |
| Battery Life | Up to 15.5 hours of Local Video Playback2 Up to 10 days of Standby Time2 Up to 27 hours of Talk Time2 |
| Battery Capacity | 3577mAh (typical) dual battery3 |
| Battery charging | Battery charging using 18W in box power supply |
| Camera and video recording | Adaptive camera 11MP, f/2.0, 1.0 µm, PDAF and 84.0° diagonal FOV optimized with AI for front and rear Photos:
|
| Video conferencing | Microsoft Teams and Skype video conferencing up to 1080p at 30fps High CRI LED Flash for both front and world facing photo and video scenarios |
| Countries, carriers, and compatibility 4 | Countries: U.S. Unlocked device***: AT&T, T-Mobile, Verizon Wireless Locked device: AT&T |
| Networking and connectivity | WiFi: WiFi-5 802.11ac (2.4/5GHz) Bluetooth: Bluetooth® 5.0 LTE: 4x4 MIMO, Cat 20 DL / Cat 5 UL, 5CA, LAA. Up to 1.2Gbps Download / Up to 150Mbps Upload Bands Supported FDD-LTE: 1,2,3,4,5,7,8,12,13,14,19,20,25,26,28,29,30,66 TD-LTE: 38,39,40,41,46 WCDMA: 1,2,5,8 GSM/GPRS: GSM-850, E-GSM-900, DCS-1800, PCS-1900 Location: GPS, Galileo, GLONASS, BeiDou, QZSS |
| SIM | One eSIM5 and one Nano SIM Note: AT&T locked device will not support eSIM |
| Processor | Qualcomm® Snapdragon™ 855 Mobile Platform optimized for the dual-screen experience |
| Connections | USB-C® 3.1 |
| Storage and memory 6 | 128GB or 256GB UFS 3.0 of internal storage6 6GB DRAM |
| Audio | Mono speaker, Dual Mic noise suppression and echo cancellation optimized for productive use in all postures Best-in-class Full Duplex communication for voice calls in hands-free mode Audio formats supported: 3GP, MP3, MP4, MKV, WAV, OGG, M4A, AAC, TS, AMR, FLAC, MID, MIDI, RTTL, RTX, OTA, IMY Qualcomm® aptX™ |
| Software 7 | Microsoft built-in applications:
|
| Sensors | Dual Accelerometer Dual Gyroscope Dual Magnetometer Dual Ambient Light Sensor Proximity Sensor Hall Sensor Fingerprint Sensor |
| Video playback | Video Playback Formats: 8 MKV, MOV, MP4, H.265(HEVC), AVI, WMV, TS, 3GP, FLV, WEBM Wireless: Chromecast support Wired: DisplayPort over USB-C®. Supports video out when connecting via HDMI Adapter* |
| Exterior | Exterior Material: Corning® Gorilla® Glass Color: Glacier |
| Security and authentication | Biometric lock type: Fingerprint reader (1:100K FAR <3% FRR) Lock type: Swipe, PIN, password Security applications pre-loaded on device: Microsoft Authenticator |
| Language support | All supported languages (Android™ 10) |
| Pen and inking | Supports all in market generations of Surface Slim Pen, Surface Pen and Surface Hub 2 Pen* Simultaneous Pen and touch are supported |
| What’s in the box |
|
| Warranty 9 | 1-year limited hardware warranty |
| The Microsoft Store Promise for Surface | 60-day return policy 90 days of free technical phone support Free virtual workshops and training |
Features and app availability may vary by region.
Your device contains magnets, which may damage objects such as credit cards, passbooks, access cards, boarding passes, or parking passes. Please keep a safe distance between your device and objects that are affected by magnets. Please review https://support.microsoft.com/en-us/help/4558037/product-safety-warnings-and-instructions for important safety information about your device.
* Some devices, accessories, and software sold separately. Additional fees and/or subscriptions required for some apps and features. Available apps may vary by carrier and over time. Calling requires data plan; see carrier for pricing and coverage details.
** Some devices, accessories, and software sold separately.
*** T-Mobile customers coming from Sprint’s network require a T-Mobile SIM card.
1 Excluding Surface Duo Bumper.
2 Local Video Playback: Testing conducted by Microsoft in July 2020 using preproduction Surface Duo units and software. Testing consisted of full battery discharge during local video playback on a single screen. Video playback consisted of a repeated 30-minute .mp4 file in 1080p at 24 fps. All settings were default except: LTE and Wi-Fi were both associated with a network with ‘ask to join’ disabled and Adaptive Brightness was disabled, screen was set to 100 nits. Battery life varies significantly with network and feature configuration, signal strength, settings, usage, and other factors. Battery has limited recharge cycles and cannot be replaced.
Standby Time: Testing conducted by Microsoft in July 2020 in an AT&T Validated Lab using preproduction Surface Duo units and software. Testing conducted in accordance with AT&T requirements and test specifications. All settings were default, and network settings were: connected to LTE, and Wi-Fi was enabled but not connected. Battery life varies significantly with network and feature configuration, signal strength, settings, usage and other factors. Battery has limited recharge cycles and cannot be replaced.
Talk Time: Testing conducted by Microsoft in July 2020 in an AT&T Validated Lab using preproduction Surface Duo units and software. Testing conducted in accordance with AT&T requirements and test specifications. All settings were default, and network settings were: connected to LTE, and Wi-Fi was enabled but not connected. Battery life varies significantly with network and feature configuration, signal strength, settings, usage and other factors. Battery has limited recharge cycles and cannot be replaced.
3 Specified minimum dual battery capacity is 3462mAh.
4 Network availability and coverage vary by carrier. See your carrier for details.
5 Use of eSIM requires a wireless service plan (which may include restrictions on switching service providers and roaming, even after contract expiration). Not all carriers support eSIM. AT&T locked devices will not support eSIM. Use of eSIM in Surface Duo may be disabled when purchased from some carriers. See your carrier for details.
6 System software uses significant storage space. Available storage is subject to change based on system software updates and apps usage. 1 GB = 1 billion bytes. 1 TB = 1,000 GB. See Surface.com/Storage for more details.
7 Some apps and features may require a wireless plan, additional subscriptions, or fees.
8 Video playback formats will require 3rd party apps from the Google Play Store; fees may apply.
9 Microsoft’s Limited Warranty is in addition to your consumer law rights.
