Get to know Surface Studio (1st Gen)
Note
When you unplug the power cable, unplug it from the wall first. The plug that’s attached to the base has a lock to keep it in place when you move your Surface Studio (1st Gen). If you need to unplug the power cable from the base, slide the plug away from the base to release the lock.
Surface Studio (1st Gen) hardware specifications
| Dimensions/Weight | Display: 25.1” x 17.3” x 0.5” (637.35 mm x 438.90 mm x 12.5 mm) Base: 9.8” x 8.7” x 1.3” (250.00 mm x 220.00 mm x 32.2 mm) Product weight: 21 lbs max (9.56 kg max) |
|---|---|
| Storage | Rapid Hybrid Drive options: 64GB SSD with 1TB HDD, 128GB SSD with 1TB HDD, 128GB SSD with 2TB HDD |
| Display | Screen: 28” PixelSense™ Display Resolution: 4500 x 3000 (192 PPI) Color settings: sRGB, DCI-P3 and Vivid Color Profiles, Individually color calibrated display Touch: 10 point multi-touch Aspect Ratio: 3:2 Supports Pen and Zero Gravity Hinge |
| Graphics | i5 Intel 8GB: NVIDIA® GeForce® GTX 965M 2GB GDDR5 memory i7 Intel 16GB: NVIDIA® GeForce® GTX 965M 2GB GDDR5 memory i7 Intel 32GB: NVIDIA® GeForce® GTX 980M 4GB GDDR5 memory |
| Memory | 8GB, 16GB, or 32GB RAM |

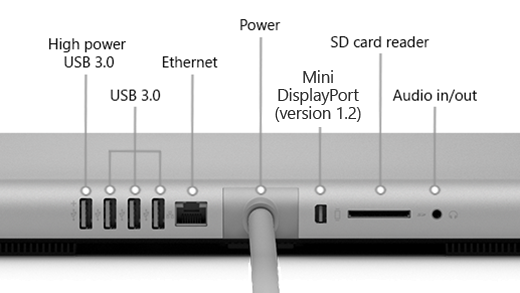

| Connections & expansions | 4 x USB 3.0 (one high power port) Full-size SDXC ™ card reader (UHS-I) compatible Mini DisplayPort 3.5 mm headset jack Compatible with Surface Dial on-screen interaction(*1) 1 Gigabit Ethernet port |
| Processor | 6th Generation Intel® Core™ i5 or i7 |

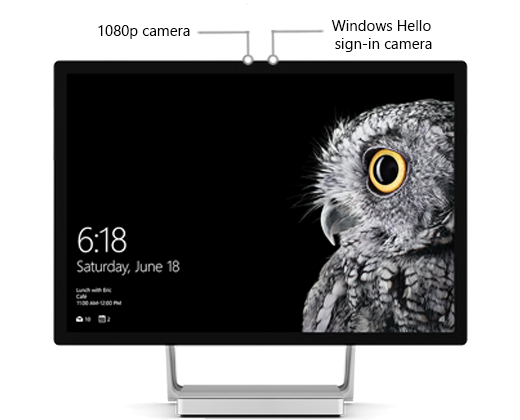

| Cameras, video and audio | Windows Hello(*2) face sign-in camera 5.0 MP camera with 1080p HD video (front) Dual microphones Stereo 2.1 speakers with Dolby® Audio™ Premium 3.5 mm headphone jack |
| Security | TPM chip for enterprise security Enterprise-grade protection with Windows Hello(*2) face sign-in |
| Wireless | Wi-Fi: 802.11ac Wi-Fi wireless networking, IEEE 802.11 a/b/g/n compatible Bluetooth Wireless 4.0 technology Xbox Wireless built-in |
| Software | Windows 10 Pro Office 30-day trial |

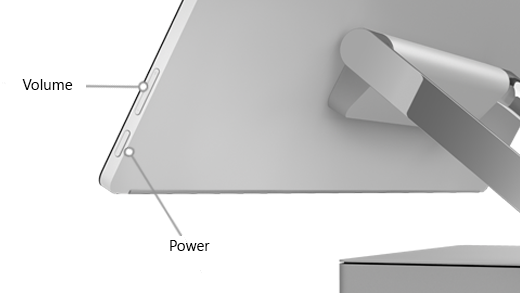

| Buttons/Keyboard | Volume key and power key Surface Pen Surface Keyboard Surface Mouse |
| What’s in the box | Surface Studio Surface Pen Surface Keyboard Surface Mouse Power cord with grip-release cable Quick start guide Safety and warranty guide Booklet |
| Warranty | 1-year limited hardware warranty |
| Best-in-class support from Microsoft Store | 30-day return policy 90 days of free technical phone support 12 months in-store support and technical assistance 1 free training session and Surface device health check |
*1 Sold separately.
*2 Windows Hello requires specialized hardware, including fingerprint reader, illuminated IR sensor or other biometric sensors.
